Free Mind (.mm) Xml

Example of format that was exported as FreeMind .mm from Mind Node

Simple Example

<map version="1.0.0">
    <node ID="F3A37367-7760-4F79-B59C-09894E72A7FE" BACKGROUND_COLOR="#F2F2F2" TEXT="Mind Map" COLOR="#4B4B4B"
          POSITION="right" STYLE="bubble">
        <edge COLOR="#FFFFFF" WIDTH="4"/>
        <font NAME="HelveticaNeue-Medium" SIZE="31"/>
        <node ID="779F6F99-3711-4F36-A93D-78FE18D1CA1E" TEXT="yellow" COLOR="#F2F2F2" POSITION="right" STYLE="fork">
            <edge COLOR="#FFCD3B" WIDTH="6"/>
            <font NAME="HelveticaNeue" SIZE="20"/>
        </node>
        <node ID="222D1F36-A094-49FF-8614-A1D7D24A6EB8" TEXT="red" COLOR="#F2F2F2" POSITION="right" STYLE="fork">
            <edge COLOR="#FF5E69" WIDTH="6"/>
            <font NAME="HelveticaNeue" SIZE="20"/>
        </node>
    </node>
</map>

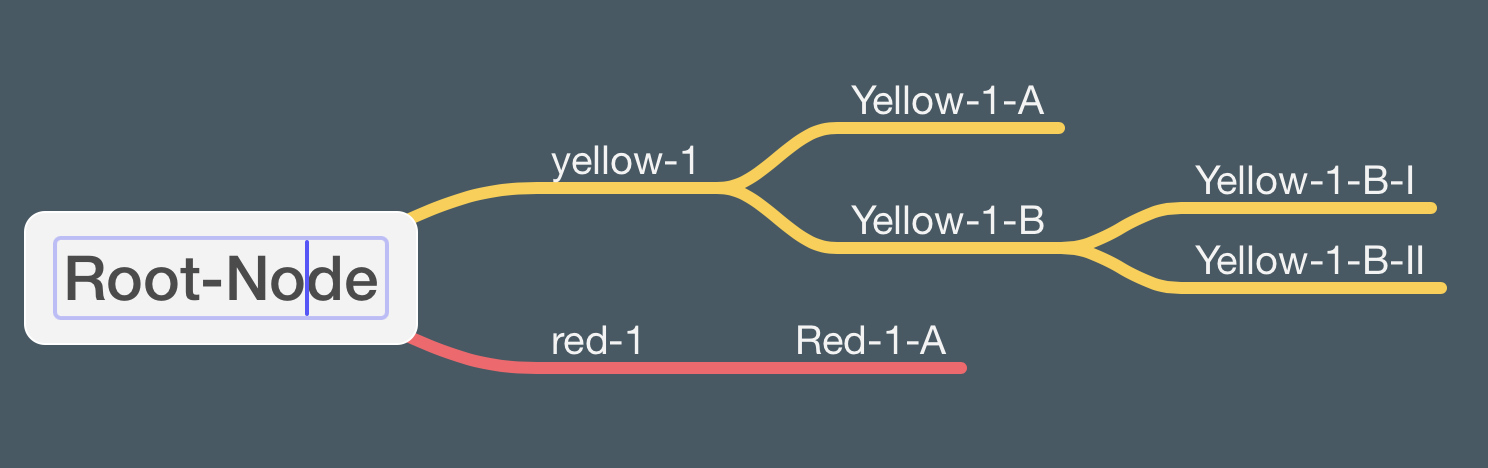

More Complex Example

<map version="1.0.0">
    <node ID="1C64E56B-E5EA-4FD3-A572-0F2892067D4D" BACKGROUND_COLOR="#F2F2F2" TEXT="Root-Node" COLOR="#4B4B4B"
          POSITION="right" STYLE="bubble">
        <edge COLOR="#FFFFFF" WIDTH="4"/>
        <font NAME="HelveticaNeue-Medium" SIZE="31"/>
        <node ID="9611FCCD-9CF9-4DFA-8E02-BCF1FC51709B" TEXT="yellow-1" COLOR="#F2F2F2" POSITION="right" STYLE="fork">
            <edge COLOR="#FFCD3B" WIDTH="6"/>
            <font NAME="HelveticaNeue" SIZE="20"/>
            <node ID="238E5F74-2EB3-4C6E-B832-45D442EC1279" TEXT="Yellow-1-A" COLOR="#F2F2F2" POSITION="right" STYLE="fork">
                <edge COLOR="#FFCD3B" WIDTH="6"/>
                <font NAME="HelveticaNeue" SIZE="20"/>
            </node>
            <node ID="B48A6D14-42C6-4163-840F-B09F073D79E5" TEXT="Yellow-1-B" COLOR="#F2F2F2" POSITION="right" STYLE="fork">
                <edge COLOR="#FFCD3B" WIDTH="6"/>
                <font NAME="HelveticaNeue" SIZE="20"/>
                <node ID="305EA19F-33C7-42AC-BBEB-8B54DD0EEDF8" TEXT="Yellow-1-B-I" COLOR="#F2F2F2" POSITION="right"
                      STYLE="fork">
                    <edge COLOR="#FFCD3B" WIDTH="6"/>
                    <font NAME="HelveticaNeue" SIZE="20"/>
                </node>
                <node ID="62355707-8D39-40C3-84F2-60A04C11AAB9" TEXT="Yellow-1-B-II" COLOR="#F2F2F2" POSITION="right"
                      STYLE="fork">
                    <edge COLOR="#FFCD3B" WIDTH="6"/>
                    <font NAME="HelveticaNeue" SIZE="20"/>
                </node>
            </node>
        </node>
        <node ID="ED741DB7-6C83-4E4F-AA6F-51E6187BC6FC" TEXT="red-1" COLOR="#F2F2F2" POSITION="right" STYLE="fork">
            <edge COLOR="#FF5E69" WIDTH="6"/>
            <font NAME="HelveticaNeue" SIZE="20"/>
            <node ID="7CF949AC-D156-49DB-863E-4BB99E6D3C46" TEXT="Red-1-A" COLOR="#F2F2F2" POSITION="right" STYLE="fork">
                <edge COLOR="#FF5E69" WIDTH="6"/>
                <font NAME="HelveticaNeue" SIZE="20"/>
            </node>
        </node>
    </node>
</map>

Example with note that has content

<map version="1.0.0">
    <node ID="2100EDAD-77E0-4346-A584-62345E569DCE" BACKGROUND_COLOR="#F2F2F2" TEXT="Root-Node" COLOR="#4B4B4B"
          POSITION="right" STYLE="bubble">
        <edge COLOR="#FFFFFF" WIDTH="4"/>
        <font NAME="HelveticaNeue-Medium" SIZE="31"/>
        <node ID="3C8F9BE8-711F-463F-9EAF-7B7F0E45FE00" TEXT="Branch-1" COLOR="#F2F2F2" POSITION="right" STYLE="fork">
            <edge COLOR="#FFCD3B" WIDTH="6"/>
            <font NAME="HelveticaNeue" SIZE="20"/>
        </node>
        <node ID="88A0ADA3-D3A5-425D-849C-01B7150C0761" TEXT="Note-with-content" COLOR="#F2F2F2" POSITION="right"
              STYLE="fork">
            <edge COLOR="#FF5E69" WIDTH="6"/>
            <font NAME="HelveticaNeue" SIZE="20"/>
            <richcontent TYPE="NOTE">
                <html>
                    <head></head>
                    <body>
                        <p style='color: rgba(0, 0, 0, 1.000000); font: 16px "Helvetica Neue"; -cocoa-font-postscriptname: "HelveticaNeue"; '>
                            Content-val-1 of note-with-content.
                        </p>
                    </body>
                </html>
            </richcontent>
        </node>
    </node>
</map>

Notes

The format of free mind is XML
The format supports:
- Branch colors
- Supports note contents
- Does it support images?
  - When attempted to export a mind node map with images, the images did not get reflected in FreeMind export. Tried with: image on a branch, and image on a root node. Neither showed up in the export XML.
