CoroutineScope

kotlin doc: CoroutineScope

In simple terms, a CoroutineScope in Kotlin is like a "container" that manages your coroutines. It defines the boundaries and the "lifetime" for the coroutines you start within it, ensuring that they are automatically canceled when they are no longer needed.

From Job

Go to text →

From Job Highlight

Go to text →

kdoc: Job

Job is the primary mechanism for controlling cancellation behavior of co-routines.

Job - provides another avenue of stopping work other than traditional exception flow. Separate cancellation mechanism that is not as apparent as typical exceptions, where failed co-routine cancel's all co-routines that are related to it through Job hierarchy. (Note: Supervisor-Job is exception)

From Exception/Cancellation Behavior with Regular Job

Go to text →

In ALL scopes that use Regular Job:

Uncaught, non-cancellation exception → Cancels Siblings + Propagates recursively through parent Job hierarchy, with each parent shutting down its children, Effectively shutting down the entire hierarchy up to the top most Job (or up to where you caught exception at error boundary).
- Cancels siblings: Cancellation Cooperative Functions/suspension point in sibling functions will throw CancellationException
- Propagates to parent: Parent scope will rethrow the original exception that was thrown in co-routine.

Highlight

Job - provide another avenue of stopping work other than traditional exceptions. Separate cancellation mechanism that is not as apparent as typical exception flow, where failed co-routine cancel's all co-routines that are related to it through Job hierarchy.

Each coroutine has its own Job instance.
Each Job instance is tied to it's parent job (if it has a parent Job). This tie in enables cancellation behavior.

Example

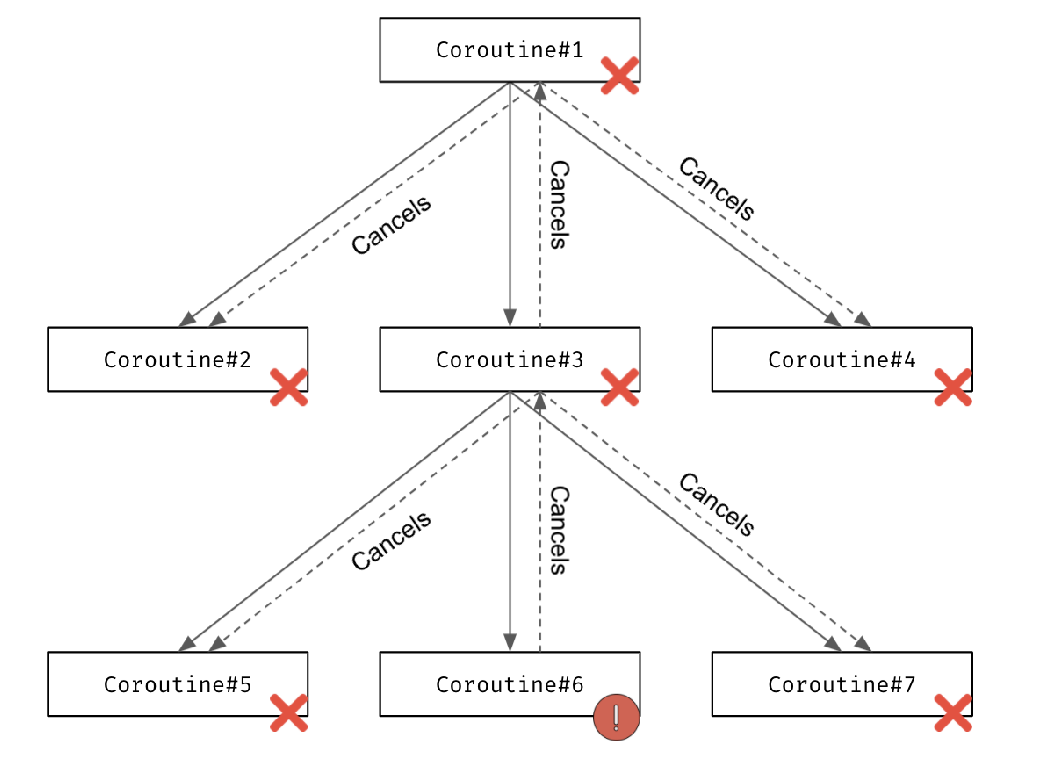

If regular Job() were used. If Coroutine#6 throws non-CancellationException exception the entire hierarchy is gonig to be cancelled and Coroutine#1 will rethrow the exception that Coroutine#6 threw.

Creating Error Boundary

Look at Coroutine scope function and Error Boundary to create error/ boundaries which allows us to try/catch exceptions stopping them from going higher up.

Gotchas

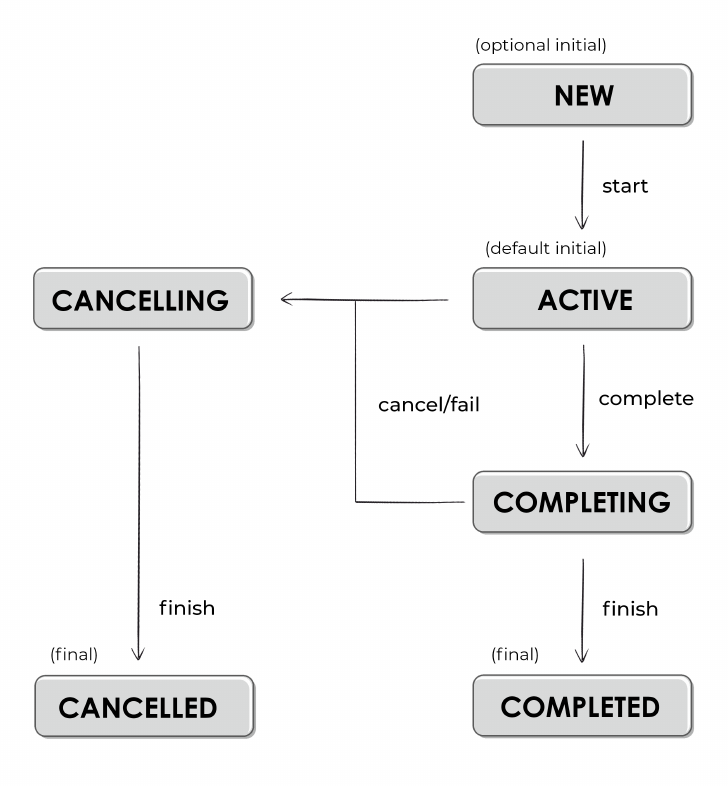

From Job states

Go to text →

State	isActive	isCompleted	isCancelled
New (optional initial state)	false	false	false
Active (default initial state)	true	false	false
Completing (transient state)	true	false	false
Cancelling (transient state)	false	false	true
Cancelled (final state)	false	true	true
Completed (final state)	false	true	false

From Supervisor-Job

Go to text →

kdoc: SupervisorJob

kdoc: Exception Handling - SupervisorJob()

SupervisorJob is similar to a regular Job with the difference that cancellation is propagated only downwards, which means:

Children can fail independently of each other.
Does not auto-fail parent.

A failure or cancellation of a child does not cause the supervisor job to fail and does not affect its other children.

From SupervisorJob() examples

Go to text →

Straightforward Examples

Trickier examples

From Scope with Regular Job

Go to text →

What is a "Scope with Regular Job"?

A Scope with Regular Job in Kotlin coroutines refers to any CoroutineScope that uses Job() and hence abides by default exception handling behavior - where uncaught non-cancellation exceptions in child coroutine Cancels (shutsdown) its entire hierarchy of co-routines.

Default Exception Behavior

From Exception/Cancellation Behavior with Regular Job

Go to text →

In ALL scopes that use Regular Job:

Uncaught, non-cancellation exception → Cancels Siblings + Propagates recursively through parent Job hierarchy, with each parent shutting down its children, Effectively shutting down the entire hierarchy up to the top most Job (or up to where you caught exception at error boundary).
- Cancels siblings: Cancellation Cooperative Functions/suspension point in sibling functions will throw CancellationException
- Propagates to parent: Parent scope will rethrow the original exception that was thrown in co-routine.

Highlight

Job - provide another avenue of stopping work other than traditional exceptions. Separate cancellation mechanism that is not as apparent as typical exception flow, where failed co-routine cancel's all co-routines that are related to it through Job hierarchy.

Each coroutine has its own Job instance.
Each Job instance is tied to it's parent job (if it has a parent Job). This tie in enables cancellation behavior.

Example

If regular Job() were used. If Coroutine#6 throws non-CancellationException exception the entire hierarchy is gonig to be cancelled and Coroutine#1 will rethrow the exception that Coroutine#6 threw.

Creating Error Boundary

Look at Coroutine scope function and Error Boundary to create error/ boundaries which allows us to try/catch exceptions stopping them from going higher up.

Gotchas

From Cancellation Gotchas (With Regular Job)

Go to text →

Code example

From Scope examples with Regular Job

Go to text →

From Core examples with regular Job

Go to text →

Also see

SupervisorJob() examples

From CancellationException focused examples

Go to text →

Scope with Regular Job - throw CancellationException - stops co-routine that threw. Does NOT stop sibling co-routine, does not rethrow to parent.

Code

package com.glassthought.sandbox

import gt.sandbox.util.output.Emojis
import gt.sandbox.util.output.Out
import kotlinx.coroutines.*
import kotlin.system.exitProcess

suspend fun main(): kotlin.Unit {
  val out = Out.standard()
  out.info("START")

  try {
    runBlocking {

      launch(CoroutineName("WillThrowCancelExc")) {
        // Loop over a range from 1 to 5 (inclusive)
        val howMany = 5
        for (i in 1..howMany) {
          val timeMillis = 1000L
          out.info("I will call throw CancellationException in $timeMillis ms - processing value:[${i}/${howMany}]")
          delay(timeMillis)
          out.warn("I am throwing CancellationException at value - [${i}/${howMany}]")

          throw CancellationException("cancel-message")
        }
      }

      launch(CoroutineName("JustPrints")) {
        (0..10)
          .map { "a-${it}" }
          .forEach {
            out.info(it)

            try {
              delay(500)
            } catch (e: CancellationException) {
              val excMsg = e.message ?: e.toString()
              out.warn("${Emojis.OBIDIENT} I have caught [${e::class.simpleName}/$excMsg], and rethrowing it ${Emojis.OBIDIENT} ")

              throw e
            }
          }

        out.info("${Emojis.CHECK_MARK} I have FINISHED all of my messages.")
      }
    }

  } catch (e: Exception) {
    out.error("runBlocking threw an exception! of type=[${e::class.simpleName}] with msg=[${e.message}]")

    exitProcess(1)
  }

  out.info("DONE no errors at main.")
}

class MyExceptionWillThrowFromCoroutine(msg: String) : RuntimeException(msg)

Command to reproduce:

gt.sandbox.checkout.commit b7c3be031f6453aa7ce9 \
&& cd "${GT_SANDBOX_REPO}" \
&& cmd.run.announce "./gradlew run --quiet"

Recorded output of command:

Picked up JAVA_TOOL_OPTIONS: -Dkotlinx.coroutines.debug
Picked up JAVA_TOOL_OPTIONS: -Dkotlinx.coroutines.debug
[INFO][elapsed:   25ms][🥇][🧵][tname:main/tid:1] START
[INFO][elapsed:   67ms][🥇][①][coroutname:@WillThrowCancelExc#2][tname:main/tid:1] I will call throw CancellationException in 1000 ms - processing value:[1/5]
[INFO][elapsed:   74ms][🥇][⓶][coroutname:@JustPrints#3][tname:main/tid:1] a-0
[INFO][elapsed:  575ms][🥇][⓶][coroutname:@JustPrints#3][tname:main/tid:1] a-1
[WARN][elapsed: 1074ms][🥇][①][coroutname:@WillThrowCancelExc#2][tname:main/tid:1] I am throwing CancellationException at value - [1/5]
[INFO][elapsed: 1075ms][🥇][⓶][coroutname:@JustPrints#3][tname:main/tid:1] a-2
[INFO][elapsed: 1576ms][🥇][⓶][coroutname:@JustPrints#3][tname:main/tid:1] a-3
[INFO][elapsed: 2076ms][🥇][⓶][coroutname:@JustPrints#3][tname:main/tid:1] a-4
[INFO][elapsed: 2577ms][🥇][⓶][coroutname:@JustPrints#3][tname:main/tid:1] a-5
[INFO][elapsed: 3077ms][🥇][⓶][coroutname:@JustPrints#3][tname:main/tid:1] a-6
[INFO][elapsed: 3578ms][🥇][⓶][coroutname:@JustPrints#3][tname:main/tid:1] a-7
[INFO][elapsed: 4079ms][🥇][⓶][coroutname:@JustPrints#3][tname:main/tid:1] a-8
[INFO][elapsed: 4579ms][🥇][⓶][coroutname:@JustPrints#3][tname:main/tid:1] a-9
[INFO][elapsed: 5080ms][🥇][⓶][coroutname:@JustPrints#3][tname:main/tid:1] a-10
[INFO][elapsed: 5581ms][🥇][⓶][coroutname:@JustPrints#3][tname:main/tid:1] ✅ I have FINISHED all of my messages.
[INFO][elapsed: 5581ms][🥇][🧵][tname:main/tid:1] DONE no errors at main.

Calling this.cancel()

Key Takeaway

Unless you explicitly use SupervisorJob or supervisorScope, you're working with a scope with regular job that follows structured concurrency principles where one child's failure affects the entire coroutine family.

From example

Go to text →

GT-Sandbox-Snapshot: Example - 1, Cancelling using SupervisorJob

Code

package com.glassthought.sandbox

import gt.sandbox.util.output.Out
import kotlinx.coroutines.*

interface Server {
  suspend fun start()
  suspend fun stop()
}

val out = Out.standard()

class ServerImpl(
  private val scope: CoroutineScope // Injected scope for better control
) : Server {

  private val job = SupervisorJob() // Ensures independent coroutines
  private val serverScope = scope + job

  override suspend fun start() {
    out.info("Starting server")

    serverScope.launch(CoroutineName("ServerWork-1")) {
      out.info("Running server work in thread: ${Thread.currentThread().name}")
      delay(2000)
      out.info("ServerWork-1 completed")
    }

    serverScope.launch(CoroutineName("ServerWork-2")) {
      out.info("Running additional server work in thread: ${Thread.currentThread().name}")
      delay(1500)
      out.info("ServerWork-2  completed")
    }
  }

  override suspend fun stop() {
    out.info("Stopping server")

    job.cancel()
  }
}

fun main() = runBlocking {
  out.info("--------------------------------------------------------------------------------")
  out.info("Example where the server is aborted prior to finishing:")
  runWithDelayBeforeStopping(1000)

  out.info("--------------------------------------------------------------------------------")
  out.info("Example where the server has time to finish:")
  runWithDelayBeforeStopping(3000)
}

private suspend fun runWithDelayBeforeStopping(delayBeforeStopping: Long) {
  val server = ServerImpl(CoroutineScope(Dispatchers.Default)) // Inject external scope
  server.start()
  delay(delayBeforeStopping) // Use delay instead of Thread.sleep
  server.stop()
}

Command to reproduce:

gt.sandbox.checkout.commit bed37c930bb1de4223cb \
&& cd "${GT_SANDBOX_REPO}" \
&& cmd.run.announce "./gradlew run --quiet"

Recorded output of command:

[elapsed:   51ms][🥇/tname:main/tid:1][coroutine:unnamed] --------------------------------------------------------------------------------
[elapsed:   62ms][🥇/tname:main/tid:1][coroutine:unnamed] Example where the server is aborted prior to finishing:
[elapsed:   65ms][🥇/tname:main/tid:1][coroutine:unnamed] Starting server
[elapsed:   73ms][⓶/tname:DefaultDispatcher-worker-1/tid:20][coroutine:ServerWork-1] Running server work in thread: DefaultDispatcher-worker-1
[elapsed:   74ms][⓷/tname:DefaultDispatcher-worker-2/tid:21][coroutine:ServerWork-2] Running additional server work in thread: DefaultDispatcher-worker-2
[elapsed: 1084ms][🥇/tname:main/tid:1][coroutine:unnamed] Stopping server
[elapsed: 1087ms][🥇/tname:main/tid:1][coroutine:unnamed] --------------------------------------------------------------------------------
[elapsed: 1087ms][🥇/tname:main/tid:1][coroutine:unnamed] Example where the server has time to finish:
[elapsed: 1087ms][🥇/tname:main/tid:1][coroutine:unnamed] Starting server
[elapsed: 1088ms][⓶/tname:DefaultDispatcher-worker-1/tid:20][coroutine:ServerWork-1] Running server work in thread: DefaultDispatcher-worker-1
[elapsed: 1088ms][⓷/tname:DefaultDispatcher-worker-2/tid:21][coroutine:ServerWork-2] Running additional server work in thread: DefaultDispatcher-worker-2
[elapsed: 2594ms][⓷/tname:DefaultDispatcher-worker-2/tid:21][coroutine:ServerWork-2] ServerWork-2  completed
[elapsed: 3093ms][⓷/tname:DefaultDispatcher-worker-2/tid:21][coroutine:ServerWork-1] ServerWork-1 completed
[elapsed: 4089ms][🥇/tname:main/tid:1][coroutine:unnamed] Stopping server

Cannot re-use scope

From Cannot Re Use Scope

Go to text →

https://chatgpt.com/share/31be55da-2e7f-4dc8-9fc3-000384f58086

Sample - 1

import kotlinx.coroutines.*

fun main() = runBlocking {
    val scope = CoroutineScope(Dispatchers.Default)

    val job = scope.launch {
        println("Job started")
        delay(1000)
        println("Job completed")
    }

    delay(500)  // Wait for a while
    scope.cancel()  // Cancel the scope

    // Attempt to launch a new job in the cancelled scope
    val newJob = scope.launch {
        println("New job started")
        delay(1000)
        println("New job completed")
    }

    newJob.invokeOnCompletion { exception ->
        if (exception is CancellationException) {
            println("New job was cancelled due to scope cancellation")
        } else if (exception != null) {
            println("New job completed with exception: $exception")
        } else {
            println("New job completed successfully")
        }
    }

    // Wait for all jobs to complete
    joinAll(job, newJob)
}

Sample - 2

import kotlinx.coroutines.*

fun main() = runBlocking {
    val scope = CoroutineScope(Dispatchers.Default)

    val job = scope.launch {
        println("Job started")
        delay(1000)
        println("Job completed")
    }

    delay(500)  // Wait for a while
    scope.cancel()  // Cancel the scope

    // Create a new scope and launch a new job
    val newScope = CoroutineScope(Dispatchers.Default)
    val newJob = newScope.launch {
        println("New job started")
        delay(1000)
        println("New job completed")
    }

    // Wait for all jobs to complete
    joinAll(job, newJob)
}

Scope functions

From Coroutine scope function and Error Boundary

Go to text →

coroutineScope: The hero of coroutines.

coroutineScope creates a boundary that establishes a new CoroutineScope.

The new scope inherits its coroutineContext from the outer scope, but overrides the context’s Job. It also causes the current coroutine to suspend until all child coroutines have finished their execution.

The scope created by coroutineScope has a new Job - this creates an exception boundary where failures surface. However, exceptions will continue propagating up the Job hierarchy unless intercepted by exception handling (try-catch, CoroutineExceptionHandler) at the scope boundary.

Coroutine scope functions create an error/exception boundary: Allow us to try-catch the Exception to prevent it from bubbling up to parent Job.

Error boundary example

Without error boundary

launch { // Job A
    launch { // Job B - direct child of A
        throw Exception() // Exception happens in B
                         // B fails and cancels A
                         // NO stopping point at B
                         // Cancels A
    }
}

Moving towards error boundary using coroutineScope

launch { // Job A
    coroutineScope { // Job B - creates exception boundary
        launch { // Job C - child of B
            throw Exception() // Exception happens in C
                              // C fails, B fails and surfaces exception
                              // CAN be caught at B's boundary (not caught right now)
        }
    }
}

Example creating error boundary try-catch:

launch {
   try {
       // coroutineScope will wait for all the child co-routines to finish.
       coroutineScope {
           launch {
               delay(1000)
               throw RuntimeException("boom!")
           }
       }
   } catch (e: CancellationException) {
       // Re-throw CancellationException - do NOT suppress cancellation!
       throw e
   } catch (e: Exception) {
      println("Caught: ${e.message}")
       // Handle other exceptions - stops propagation
       // Coroutine continues normally here
   }

   println("Launch continues after exception handling")
}

Details on individual Scope functions:

From Coroutine scope function instances

Go to text →

From coroutineScope (Function)

Go to text →

See Coroutine scope function and Error Boundary for detailed info on scope functions.

Inherits a context from its parent, while creating a new Regular Job that inherits from parent Job.
Uncaught Exception from one child:
- Non-Cancellation exception: Cancels other children when one throws Uncaught Exception.
- Cancellation exception: only stops the throwing child.
Waits for all its children before it can finish itself (when children do not throw)
Cancels all its children when the parent is cancelled

From withTimeout()

Go to text →

Relationships

rel.similar-to (Private):coroutineScope (Function)

Gotchas

From withContext

Go to text →

Relationships

rel.similar-to (Private):coroutineScope (Function)

Gotchas

⚠️ Dont use withContext(SupervisorJob()) ⚠️

From supervisorScope

Go to text →

Highlight

Does NOT cancel when child raises an exception.
Does NOT cancel children when child raises an exception.
Waits for ALL children, even failing ones, even after some have failed and threw.
Collects ALL exceptions from co-routines.

Notes

Respects parent cancellation

Notes

From nesting-is-allowed

Go to text →

suspend fun calculateAnswerOrNull(): User? =
    withContext(Dispatchers.Default) {
        withTimeoutOrNull(1000) {
            calculateAnswer()
        }
}

Building scope gotchas

From building-scope-gotchas

Go to text →

+Job()/+SupervisorJob() must-inherit-from-parent or it will ⚠️not respect parent cancellation⚠️

Children

Backlinks
